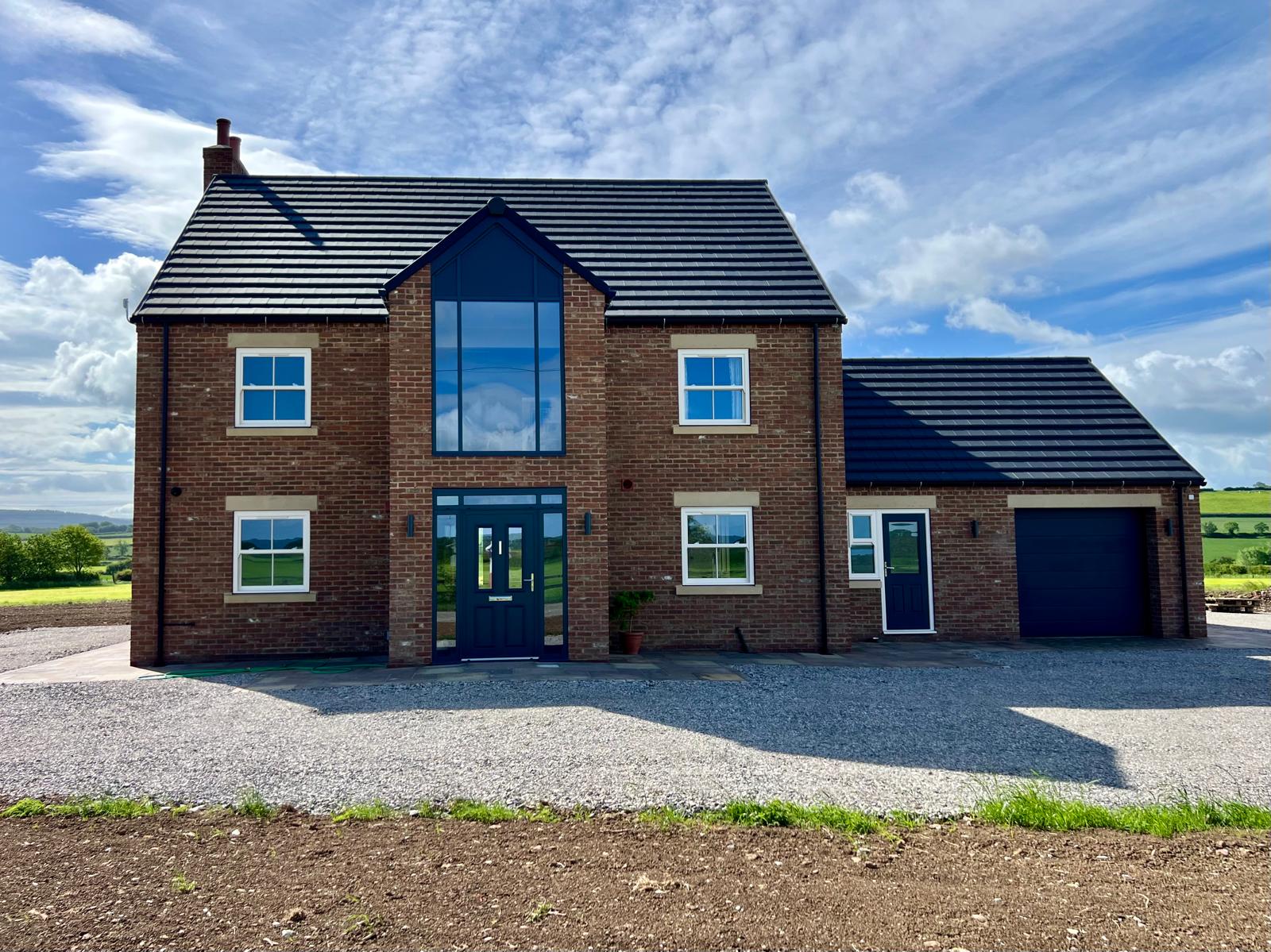

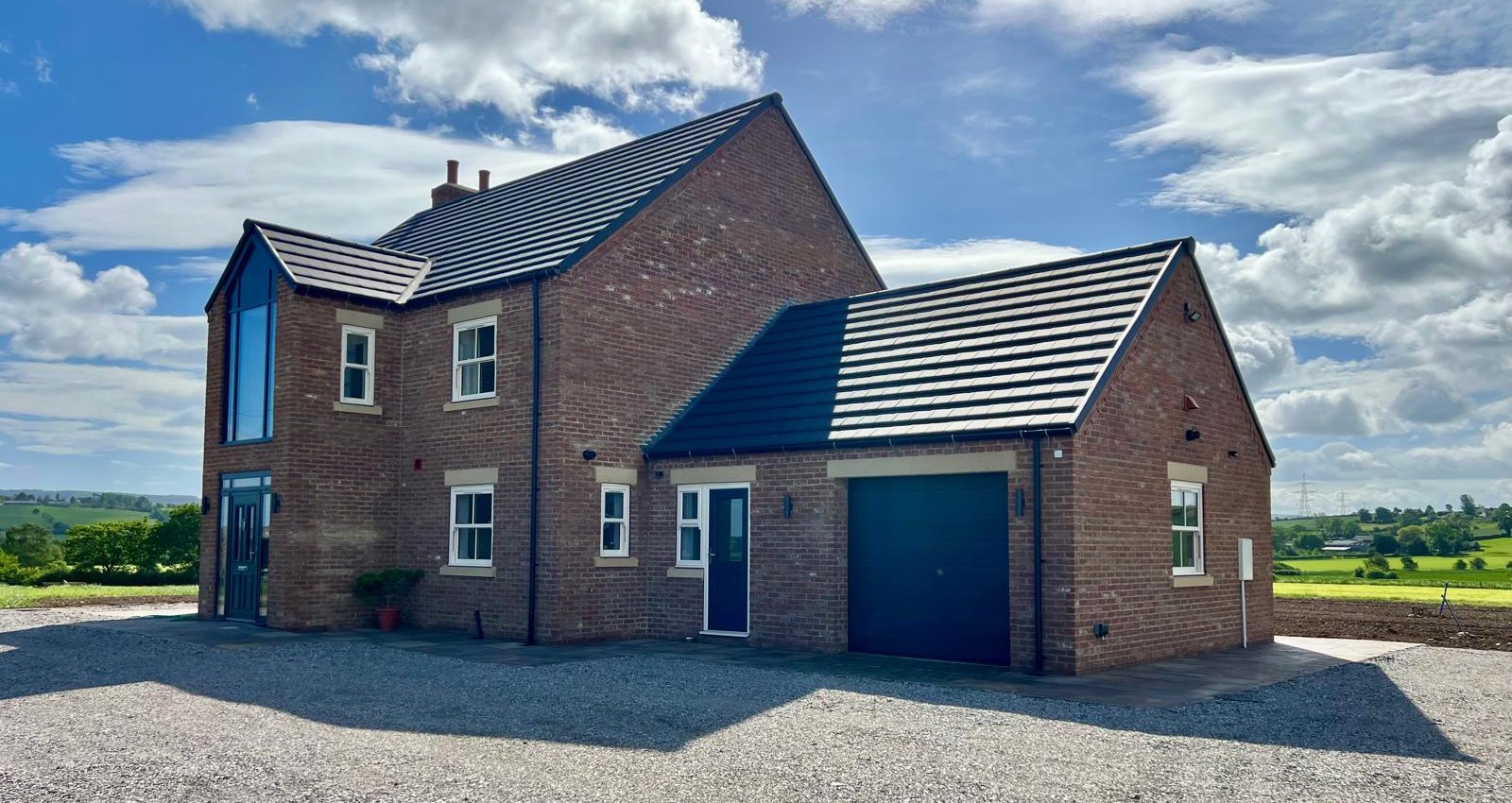

Ground Source Heat Pump Installation for Self-Build Home Near Northallerton
Client: Private Self-Builder
Location: Near Northallerton, North Yorkshire
Property Type: 3-Bedroom Self-Build Home
Property Size:198m2
System Installed: NIBE S1256-8 Ground Source Heat Pump
Funding: Boiler Upgrade Scheme (BUS) Grant Applied
Overview – Designing Renewable Heating into a North Yorkshire Self-Build
Building a new home presents a unique opportunity to incorporate renewable technologies from the very beginning. For this 3-bedroom self-build property just outside Northallerton, the homeowner wanted a heating solution that would provide exceptional comfort, low running costs, and long-term sustainability.
By engaging Geowarmth during the construction phase, the heating system could be designed around the property rather than adapted later. This allowed the installation of a highly efficient ground source heat pump system, ensuring the home would benefit from stable, renewable heating for decades to come.
With a calculated peak heat loss of 5.28kW and a total annual heating and hot water demand of 16,874kWh, the property was ideally suited to a ground source heat pump installation.
The Solution – A Fully Integrated Ground Source Heating System

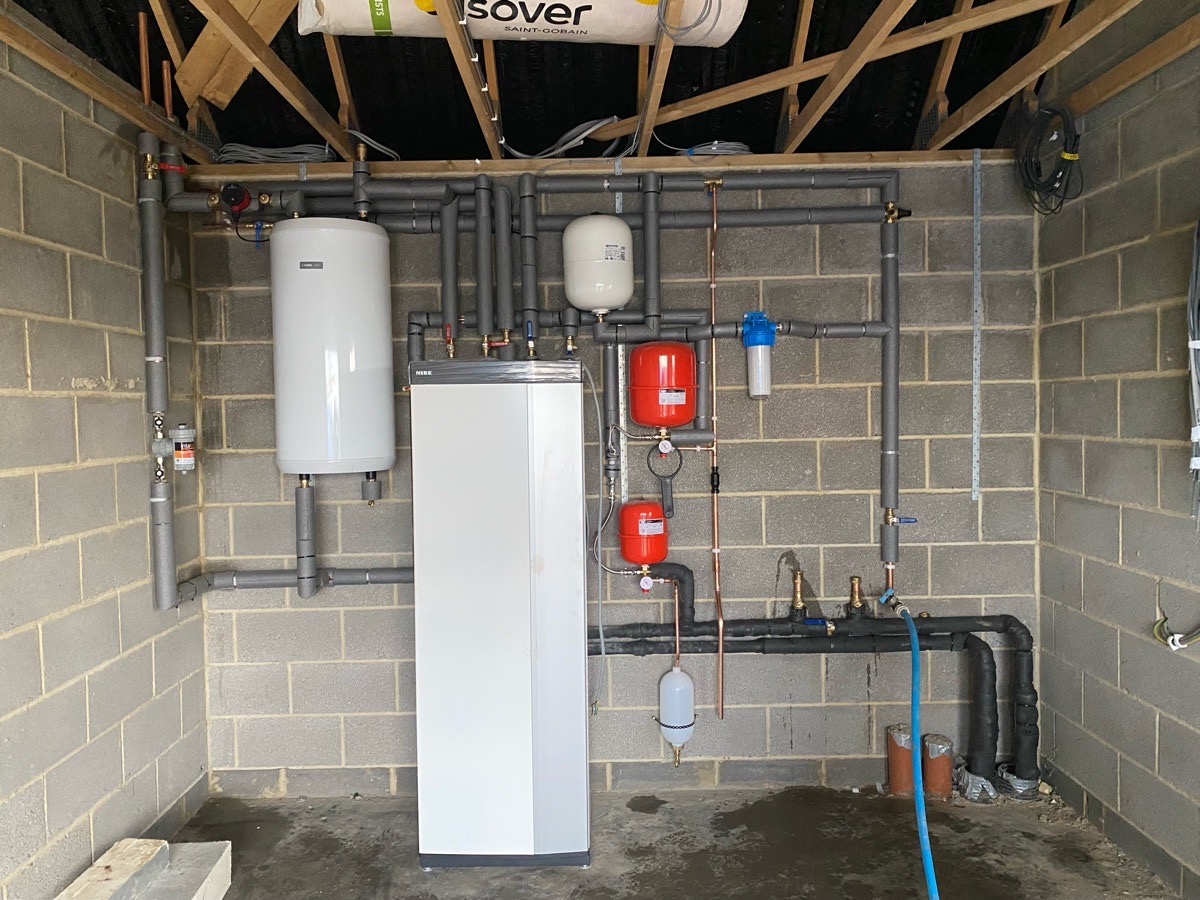

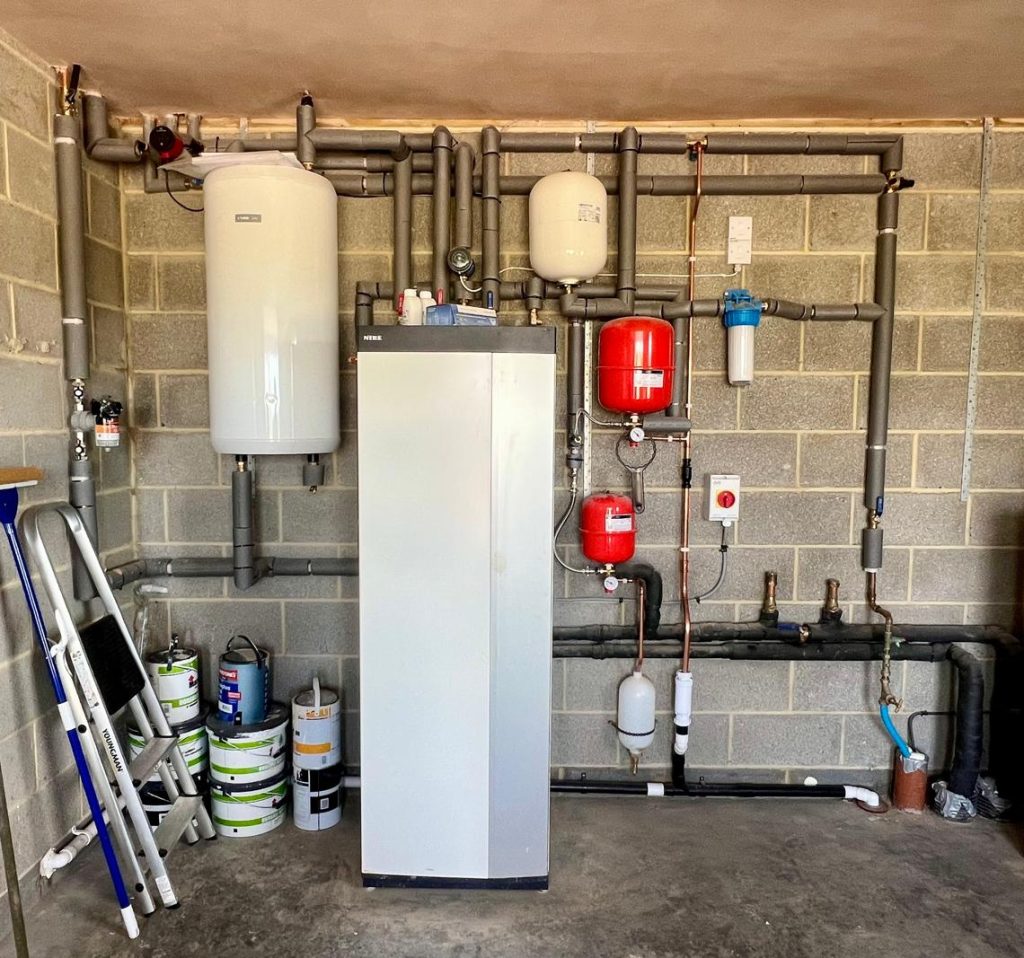

At the heart of the installation is a NIBE S1256-8 ground source heat pump.
Manufactured in Sweden, NIBE is widely recognised as the world’s leading manufacturer of ground source heat pumps. The S1256 range is designed to deliver exceptional efficiency through intelligent inverter-driven technology, automatically adjusting output to match the home’s heating requirements.
This modulation capability helps maximise efficiency while maintaining consistent indoor comfort throughout the year.
Benefits of the NIBE S1156-8
- Industry-leading seasonal efficiency
- Integrated hot water cylinder
- Advanced machine learning
- Inverter-controlled output for precise energy use
- Quiet operation
- Proven Scandinavian reliability
As one of the longest-standing NIBE Pro Partners in the UK, Geowarmth is proud to offer customers a 7-year NIBE manufacturer’s warranty, providing additional confidence and long-term peace of mind.

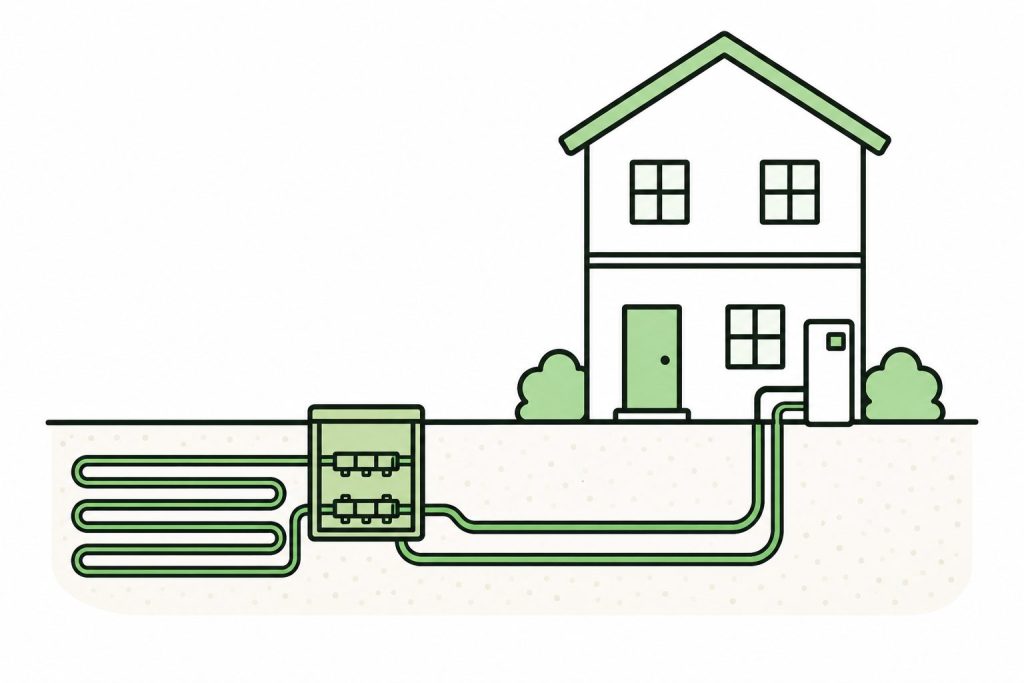

Ground Collector System – Harnessing Renewable Energy from the Ground
A ground source heat pump is only as effective as the collector system feeding it renewable energy.
For this project, Geowarmth installed:
- 2 × 250m 40mm ground loops
- Installed within carefully designed collector trenches
- Connected via a 2-port manifold chamber
- Header pipework entering the garage through the floor
- Filling and flushing points
The manifold chamber provides a centralised location for balancing, monitoring, and servicing the collector circuits, ensuring straightforward maintenance throughout the life of the system.
Unlike air source heat pumps, ground source systems benefit from the relatively stable temperatures found below ground, helping maintain excellent efficiency throughout the year.e property while giving homeowners greater control and visibility over their heating system.
Low-Temperature Heating Design – Built for Maximum Efficiency
One of the key advantages of designing renewable heating into a self-build property is the ability to optimise the entire heating system from the outset.
The home was designed to operate with a maximum flow temperature of 45°C, enabling the heat pump to achieve high levels of efficiency while maintaining excellent comfort.
Heat Distribution Throughout the Home
The heating system incorporates:

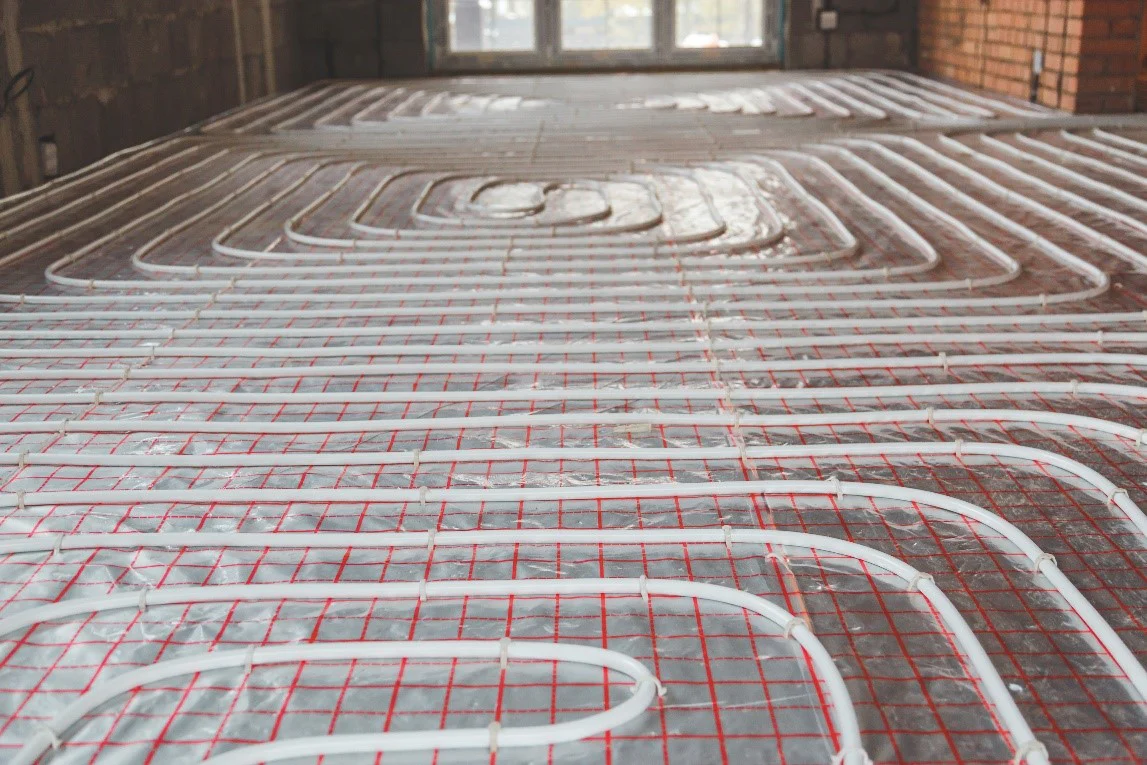

- Underfloor heating in key living areas
- Radiators in selected rooms
- Carefully calculated emitter sizing
- Consistent temperatures throughout the property
Low-temperature heating allows the heat pump to work less aggressively while delivering the same level of comfort, helping reduce energy consumption and operating costs.
Why Ground Source Heat Pumps Are Ideal for Self-Build Projects
Ground source heat pumps are often considered the gold standard for renewable heating in self-build homes.
Because groundworks are already taking place during construction, collector loops can be installed efficiently and economically before landscaping is completed.
For self-builders in North Yorkshire, this provides several advantages:
Long-Term Benefits
- Stable year-round efficiency
- Low operating costs
- Reduced carbon emissions
- Minimal maintenance requirements
- Future-proof heating solution
- Increased property appeal and value
By integrating renewable heating from the outset, homeowners can avoid future retrofit costs while achieving exceptional energy performance from day one.
Key Project Highlights
Many bungalows across North Shields and the wider North East were originally built with traditional Property Details
- 3-bedroom self-build home
- Located near Northallerton, North Yorkshire
- Peak heat loss: 5.28kW
- Annual heating and hot water demand: 16,874kWh
Renewable Heating System
7-year NIBE manufacturer’s warranty
NIBE S1156-8 ground source heat pump
2 × 250m ground collector loops
40mm SDR11 PE100 pipework
2-port manifold chamber
Underfloor heating and radiators
45°C design flow temperature
Customer Outcome – Efficient, Comfortable & Future-Ready
The completed installation provides the homeowner with a highly efficient renewable heating system designed specifically for the property’s needs.
The NIBE ground source heat pump delivers:
- Consistent indoor comfort
- Excellent energy efficiency
- Reduced environmental impact
- Reliable hot water production
- Long-term protection against rising energy costs
Most importantly, the system was incorporated seamlessly into the self-build process, creating a home that is comfortable, sustainable, and ready for the future.
