What is a Needle Probe Measurement?
A needle probe measurement is a testing method used to determine the thermal conductivity of the ground at shallow depths, typically where a horizontal ground loop is being considered for a ground source heat pump system.
This method is especially useful during the early design phase of a system, providing important data to inform the size and layout of horizontal ground collectors.
How It Works:
- The ground is lightly augured (bored) by a technician to create access at specific depths.

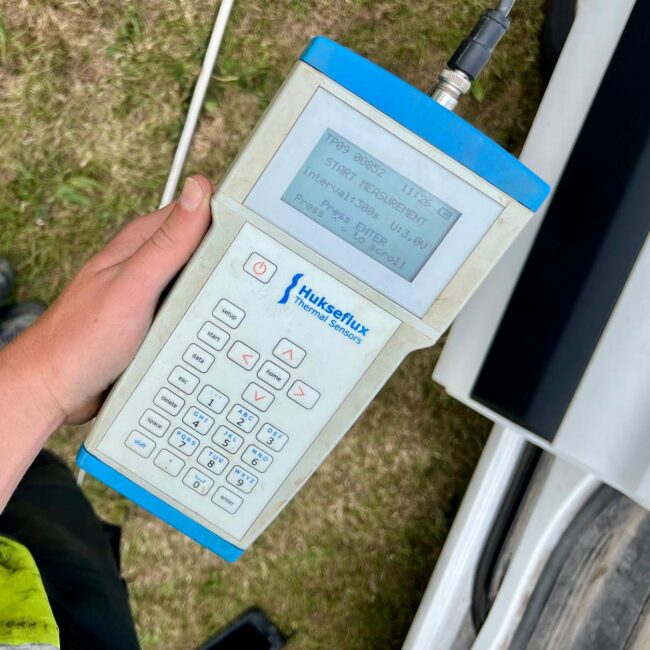

- A thermal needle probe, which contains both a heating element and a temperature sensor, is inserted into the soil.
- The probe applies a controlled amount of heat while recording how the temperature changes over time.
- This data is then analysed using thermal equations to calculate the soil’s thermal conductivity.
- Multiple readings may be taken across the site to improve accuracy, and the results are combined to produce a geometric mean thermal conductivity value for the location.
Why It’s Useful:
-
Non-invasive and low-cost – ideal for small to mid-scale projects.
-

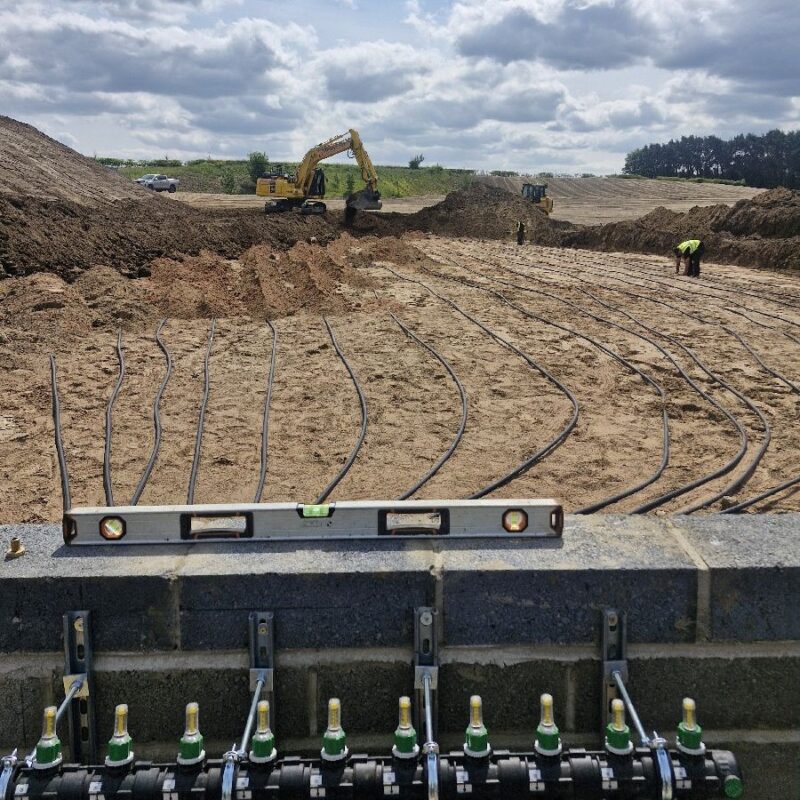

Helps ensure the horizontal ground array is correctly sized and spaced.
-
Assists in predicting system efficiency and long-term performance.
-
Quicker and simpler than full-scale Thermal Response Testing, especially where boreholes are not planned.
When Is It Used?
-
On sites proposing horizontal ground loops for GSHP systems.
-
When shallow ground conditions need to be assessed.
-
During feasibility studies or preliminary design stages.
Needle probe testing gives designers and installers like Geowarmth a reliable, data-backed understanding of local ground conditions—ensuring efficient, well-sized systems with reduced design risk.
